1. Automist Installer Manuals Repository

Automist Ultra is continually improving through hardware and software updates. As a result, the correct Design, Installation, Operation, and Maintenance (DIOM) procedures will depend on the specific version of hardware and software installed in the system.

Identifying Your System Version

• Hardware version is printed on the label attached to the system pump.

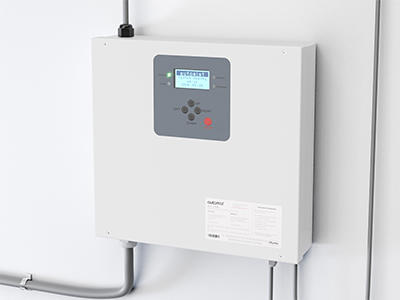

• Software version is shown on the controller during power-up, or can be accessed manually via the controller menu.


To check the software version manually:

• Hold the left button on the controller for 10 seconds.
• The menu will appear; the first option will be “Sounder.”
• Press the up button once to reach “Version.”
• Press the right button to display the software version in the format NNN_AA (e.g., 0385_AP1.14).


Which DIOM Manual Should I Use?

• Use the DIOM version that matches your system’s software version.
• If your system’s software version falls between two versions listed in the table below, use the DIOM associated with the earlier version (higher on the table). Procedures will be consistent across these versions.
• If your system’s software is older than the latest version, contact Plumis to request a software programmer to update your controller.
• If your hardware has been updated to a newer software version, always refer to the newer DIOM manual, as system procedures (e.g., for commissioning) may have changed.


Version Reference Table

Click the links below to download the following documents:

• Automist DIOM 50-60Hz V2.0 (August 2025)
• Automist Hose & Cable Installation Guide V1
• Commissioning Cheat Sheet v9.2


2. Contractor AHJ Submittal Package Contents

The following documents should be included when submitting Automist for AHJ review and approval. Each file serves a specific role in demonstrating code compliance, third-party validation, and product integrity:

Automist NFPA 750 Compliance Matrix
A detailed matrix mapping Automist’s performance and design to the requirements of NFPA 750 (Standard on Water Mist Fire Protection Systems).

DIOM Automist Installer DIOM 60Hz Latest Version (see above)
The current Design, Installation, Operation, and Maintenance manual for the 60Hz Automist system. This guides proper installation and is version-matched to current hardware/software.

ISO 9001 Certificate 2024
Confirms that Plumis maintains ISO 9001:2015 certified quality management systems — evidence of consistent manufacturing and design practices.

Letter Report – PI Fire Testing Project 4790418313 – Final Combined
Independent third-party test report documenting fire performance testing under defined conditions. Useful for demonstrating functional equivalence to sprinkler systems.

Plan Submittal
A detailed design of the Automist system for the specific project, showing locations of spray heads, pump/control unit, water and electrical connections, and coverage areas. This should be stamped by a licensed designer/engineer if required by local rules.

UL Confirmation Letter EX29276
A formal letter from UL confirming Automist’s listing under file number EX29276. Include this to verify the system is UL-certified for residential fire suppression.

UL System Certificates for Automist 20.02.2025
Current UL certification documents confirming compliance with safety standards as of February 20, 2025. Provides proof of ongoing listing and conformity.

UL 2167 2021
The referenced UL standard that applies to water mist nozzles and components. Include for technical completeness if AHJ requests reference to applicable UL testing criteria.
